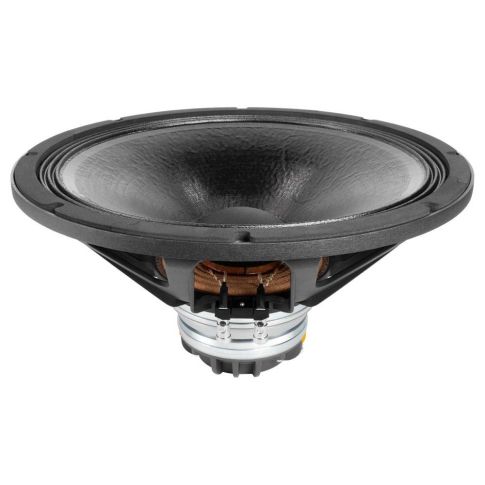

Faital Pro 15HX500-8 Coaxial Driver
SKU
FA-15HX500-8
The Faital Pro 15HX500-8 is a 15-inch neodymium coaxial driver with 8 ohm impedance that delivers high sensitivity of 97 dB on the low-frequency section and 105 dB on the high-frequency section. It covers a wide frequency range from 40 Hz to 20 kHz for clear, coherent output in demanding professional audio setups.
The Faital Pro 15HX500-8 brings together a 15-inch low-frequency driver and a high-frequency compression driver in one compact coaxial package, giving system designers a single point source for consistent coverage.
Its neodymium magnet structure keeps overall weight to just 6.1 kg while still handling 400 W AES on the woofer and 90 W AES on the tweeter, making it practical for both flown arrays and frequent load-ins.
With sensitivity rated at 97 dB for lows and 105 dB for highs, the driver produces high output from modest amplification, which is useful in portable PA and monitor applications where power budget and amplifier channels are limited.
Installers and rental companies use the 15HX500-8 in floor wedges, side fills, front fills and compact full-range cabinets because the coaxial layout removes the usual lobing and phase issues between separate low and high drivers.
The 100° conical high-frequency dispersion and smooth frequency response from 40 Hz to 20 kHz also suit permanent installations in venues that need reliable off-axis performance without additional processing.
- Professional stage monitors and floor wedges
- Compact full-range PA loudspeakers
- Side fills and front fills
- Installed sound systems and portable PA
- High-quality monitor cabinets or custom multi-way designs
| Additional Information | Nominal Diameter: 380 mm (15 in) Net Weight: 6.1 kg (13.4 lb) Nom. Impedance LF/HF: 8 Ohm AES Power Handling LF: 400 W AES Power Handling HF: 90 W Sensitivity LF: 97 dB Sensitivity HF: 105 dB Frequency Range LF: 40÷3150 Hz Frequency Range HF: 500÷20000 Hz Voice Coil Diameter LF: 77 mm (3.03 in) Voice Coil Diameter HF: 74 mm (2.91 in) Magnet: Neodymium Ring Dispersion Angle HF: 100° |
|---|---|
| Main Sub Category | Audio |
