FaitalPRO FA-HF1460 HF Driver 1.4" - 120 W - 8 Ohm
SKU
FA-HF1460

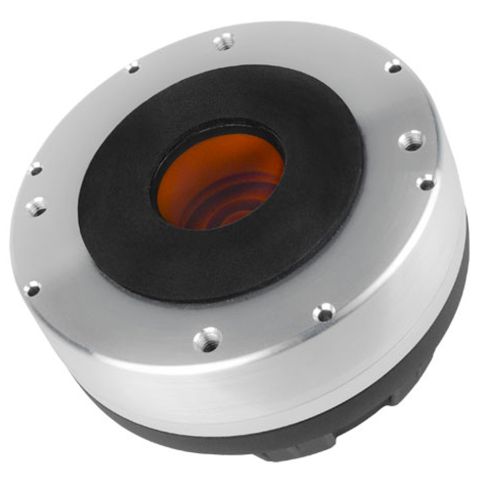

The FaitalPRO FA-HF1460 is a 1.4 inch high frequency driver built for professional audio systems. Rated at 120 W AES with 8 ohm nominal impedance, it delivers high-frequency output from 0.6 kHz to 18 kHz at 109 dB sensitivity. A neodymium ring magnet and carbon fibre diaphragm support clean performance in demanding installations.
The FaitalPRO FA-HF1460 provides a dedicated high-frequency solution for loudspeaker builders who need consistent output above the midrange. Its 1.4 inch throat and annular phase plug work together to maintain clarity at higher volumes.
Installers and system designers choose this driver for fixed installations, portable arrays and stage monitors where reliable high-frequency extension matters. The compact footprint fits standard horn profiles without requiring major cabinet redesigns.
Power handling reaches 120 W AES with a recommended minimum crossover point of 1 kHz, while the 86 mm voice coil and neodymium ring magnet keep weight down to 2.0 kg. Sensitivity of 109 dB allows efficient system performance without excessive amplifier power.
The carbon fibre dome diaphragm and Kapton former contribute to smooth response across the stated 0.6–18 kHz range. Four M6 mounting holes on a 102 mm circle simplify attachment to common waveguides and horns.
- Nominal Impedance: 8 Ohm (Nominal), 7 Ohm (Minimum)
- Power Handling: 120 W (AES), 240 W (Maximum)
- Minimum Crossover Frequency: 1 kHz
- Sensitivity: 109 dB (1W/1m)
- Frequency Range: 0.6 - 18 kHz
- Voice Coil Diameter: 86 mm (3.4 in)
- Diaphragm Material: Carbon Fiber
- Magnet Type: Neodymium Ring
| Additional Information | Throat Diameter: 35.8 mm (1.4 in) Overall Diameter: 120 mm (4.7 in) Depth: 65 mm (2.6 in) Net Weight: 2.0 kg (4.5 lb) Flux Density: 2.2 T Re: 5.6 Ohm Exit Angle: Cylindrical |
|---|---|
| Main Sub Category | Audio |
