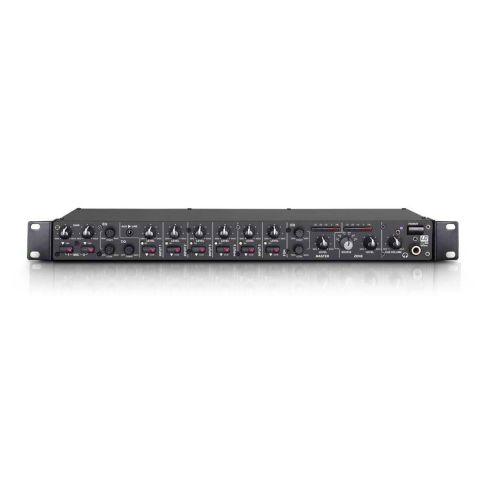

LD Systems ZONE 622 19 Inch 2 Zone Mixer 1U

The LD Systems ZONE 622 gives you 2-Zone, compact 1U zone mixer boasting 6 line, and 2 microphone channels. Each of which can be assigned either to a stereo or a mono master output.


The LD Systems ZONE 622 gives you 2-Zone, compact 1U zone mixer boasting 6 line, and 2 microphone channels. Each of which can be assigned either to a stereo or a mono master output.

LD Systems ZONE 622

The LD Systems ZONE 622 gives you 2-Zone, compact 1U zone mixer boasting 6 line, and 2 microphone channels. Each of which can be assigned either to a stereo or a mono master output. ZONE 622 gives you all the essential functions you’ll need including an input for an emergency announcement system with its own volume control; and a connection to the remote-controlled switching mute.

ZONE 622 is the perfect sound system solution for configuring separate zones in restaurants; clubs; hotels; fitness centers; and presentations. Featuring two balanced microphone channels with stereo jack inputs that also have controls fo Gain; Talkover volume; Talkover attenuation; 12V phantom power; and a shared 2-band EQ.

Line channels 1 and 2 can also be used to connect your unbalanced mics, and channel 6 has been designed specifically for balanced FOH signals. On top of that, the stereo input channels feature a cue button and volume control signal display. While channels 1-5 have an additional gain trimmer.

You’ll also find a 3.5mm mini-jack input as well as a USB port that can be used as a Stereo In or Out for recording. Allowing you to use ZONE 622 as an external audio interface. The stereo and mono output sections have their own meters; 2-band EQ; trimmer for adjusting your maximum output level; as well as electronically balanced jack plugs and terminal block connectors. Additionally, the stereo section features unbalanced RCA jacks, as well as an adjustable headphone jack for previewing.

  • 2-Zone Mixer
  • 1U Rack Mountable
  • 6 Line Channels
  • 2 Mic Channels

More Information
Additional Information

Product type: Mixers

Type: Installations

Number of Zones: 2 (Master, Zone)

Type: stereo

Installation Height: 1 U

Total Input Channels: 8 (2x Mic, 2x Mic/Line, 3x Line, 1x FOH)

Frequency response: 20 – 40000 Hz

Microphone channels: 2 (with phantom power 12 V)

Microphone Channel Connections: 6.3 mm stereo jack (balanced)

Microphone channel controls: 1 x EQ Hi , 1 x EQ Low , 1 x Talk Over Damp , 1 x Talk Over Level , Gain , On / Off

Microphone Channels Display Elements: On-LED

Microphone Channels Input Impedance: 4 kOhm

Microphone Channels Input Sensitivity: 6.1 mV

Microphone Channels: THD 0.08%

Line / Microphone Channels: 2

Line / microphone input connectors: 2 x RCA , 3.5 mm stereo jack (input 1) , 6.3 mm stereo jack (balanced)

Line / microphone channel controls: Cue , level , mic/lline , Trim

Line / Microphone Display Elements: Cue-LED , Signa-LED

Line Channels: 3

Line input connectors: Input 3-4: 2 x RCA , Input 5: 2 x RCA + USB

Line Channel Controls: Cue , level , Trim

Line Channel Display Elements: Cue-LED , Signa-LED

Line Channel Input Impedance: 4 kOhm

Line Channels Input Sensitivity: 1.5 V

Line Channels: THD 0.03%

Input sensitivity AUX/Line 3 V

FOH Channels: 1

FOH Input Connections: 6.3 mm stereo jack (2 x balanced)

FOH Input Controls: Cue , level

FOH Input Display Elements: Cue-LED , Signa-LED

Line outputs: 3 (Master – Stereo, Zone – Mono, Rec – Stereo)

Output Connectors: Master 6.3 mm stereo jack (2 x balanced) , RCA (x2) , terminal block

Master Controls: EQ Hi , EQ Low , level , Max. Level

Master Display Elements: 5-Segment Level Meter

Master Output Levels: (balanced) 24 dBu , (unbalanced) 18 dBu

Zone Output Connections: 6.3 mm stereo jack (balanced) , terminal block

Zone Controls: EQ Hi , EQ Low , level , Max. Level , Source Input 1-5/Mix

Zone Display Elements 5-Segment Level Meter

Zone Output Levels 24 (balanced/ unbalanced) dBu

Output Connections Rec 2 x RCA

Headphones ouput 1

Headphone Out Port 6.3 mm TRS

Headphone Output Controls Cue Volume

Headphone Output Voltage (@ 32 Ohm) 1.25 V

Additional Inputs 2 (Emergency Input, Output Mute)

Connections Additional Inputs terminal block

Additional Input Controls Level Emergency Input

Additional Controls power switch

Additional Display Elements Power-LED

Operating voltage 220 – 250 V AC, 50 Hz

Mains connector IEC power connector

Power consumption 18 W

Fuse T 500 mAL / 250 V

Width 485 mm

Height 44 mm

Depth 179 mm

Weight 2,4 kg

Accessories (included) Power cord , terminal blocks

Audio Options Wireless
Event Size Up to 20
