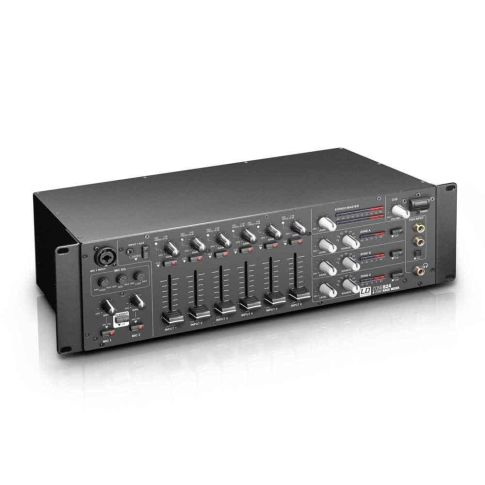

LD Systems ZONE 624 19 Inch 4 Zone Mixer 3U
SKU
LDZONE624
The LD Systems ZONE 624 gives you a fully-equipped 4-Zone Mixer. Sporting 6 line and 2 microphone channels, all of which you can assign to either a stereo or a mono master output.
LD Systems ZONE 624
19 Inch 4 Zone Mixer 3U
The LD Systems ZONE 624 gives you a fully-equipped 4-Zone Mixer. Sporting 6 line and 2 microphone channels, all of which you can assign to either a stereo or a mono master output. The ZONE 624 is a compact 3U rack device that also has inputs for an external emergency announcement system and remote-controlled switching mute.
Thanks to its extensive connectivity, the ZONE 624 is an extremely flexible solution for PA systems. So it’s perfect for food outlets, clubs, hotels, fitness centers and so much more! Sporting two balanced microphone inputs with a shared 3-band EQ, 12V phantom power, and Talkover functions. You can also individually set the Talk over for all zone outputs on the unit. While the 6 stereo input channels are equipped with gain control, signal and peak LEDs, 45mm faders, cue buttons, and RCA connections.
What’s more, ZONE 624 also has a switchable Aux input via 3.5mm jack and a USB port used as a stereo input and output. Therefore, turning ZONE 624 into an external audio interface. The master section outputs have been electronically balanced using both XLR connectors and terminal block connectors. While the stereo zone also has unbalanced RCA connectors.
Additionally, you can individually set the maximum output level for all of the zones. While the three mono outputs of the ZONE 624 each have a 2-band EQ; selectable 100Hz high pass filter; and a MIC mute switch with a level indicator.
Inputs 1-6 on the stereo master signal can be selected as a source. While the stereo output is equipped with a 3-band EQ; control for the Talkover sensitivity; and two LED chain levels meters. Finally, the ZONE 624 has a recording output as well as a controllable PFL headphone jack for previewing.
- 19″ 4-Zone Mixer
- 3U Rack Mount Device
- 6 Line Channels
- 2 Mic Channels
| Additional Information | Product type: Mixers Type Installations Number of Zones 4 (Master, Zone A-C) Type stereo Installation Height 3 U Total Input Channels 8 (2x Mic, 1x AUX/Line, 2x Phono/Line, 2x Line, 1x FOH/Line Frequency response 20 – 40000 Hz Microphone channels 2 (with phantom power 12 V) Microphone Channel Connections 6.3 mm stereo jack (2 x balanced) , XLR Microphone channel controls 1 x EQ Hi , 1 x EQ Low , 1 x Talkover , 1x EQ Mid , 2 x gain , 2x On/Off Microphone Channels Display Elements On-LED Microphone Channels Input Impedance 4 kOhm Microphone Channels Input Sensitivity 4.5 mV Microphone Channels THD 0.08 % Line Channels 6 (Input 1: Aux/Line, Input 2 + 5: Line/Phono, Input 3: USB/Line 4: Line, Input 6: Line/FOH Line input connectors input 2, 4 5: 2 x RCA , Input 1: 2 x RCA + 3.5 mm stereo jack , input 3: 2 x RCA + USB , input 6: 4 x RCA + 2 x 6.3 mm jack Line Channel Controls 2x Phono/Line , AUX enable , Cue , FOH On , Gain , level Line Channel Display Elements Cue-LED , Signal/0 dB-LED Line Channel Input Impedance (Phono) 50 kOhm , 6 kOhm Line Channels Input Sensitivity (Phono) 25m V , 2.1 V Line Channels THD (Phono) 0.05% , 0.02% input sensitivity AUX/Line 3 V Line outputs 5 (Master – Stereo, 3x Zone – Mono, Rec – Stereo) Output Connectors Master 2 x XLR (balanced) , RCA (x2) , terminal block Master Controls EQ Hi , EQ Low , EQ Mid , level , Max. Level , T/O Damping , T/O Sensitivity Master Display Elements 2 x 10 segment level meter Master Output Levels (balanced) 24 dBu , (unbalanced) 17 dBu Zone Output Connections terminal block , XLR (balanced) Zone Controls 100 Hz High Pass , Cue , EQ Hi , EQ Low , Include Mic , level , Max. Level , Source , T/O Damp Zone Display Elements 5-Segment Level Meter Zone Output Levels 24 (balanced/ unbalanced) dBu Output Connections Rec 2 x RCA Headphones ouput 1 Headphone Out Port 6.3 mm TRS Headphone Output Controls Cue Volume Headphone Output Voltage (@ 32 Ohm) 2.5 V Additional Inputs 2 (Emergency Input, Output Mute) Connections Additional Inputs terminal block Additional Input Controls Level Emergency Input Input Sensitivity Emergency Input 5 V Additional Controls power switch Additional Display Elements Power-LED Operating voltage 220 – 250 V AC, 50 Hz Mains connector IEC power connector Power consumption 25 W Fuse T 500 mAL / 250 V Width 485 mm Height 132 mm Depth 210 mm Weight 4,4 kg Accessories (included) Power cord , terminal blocks |
|---|---|
