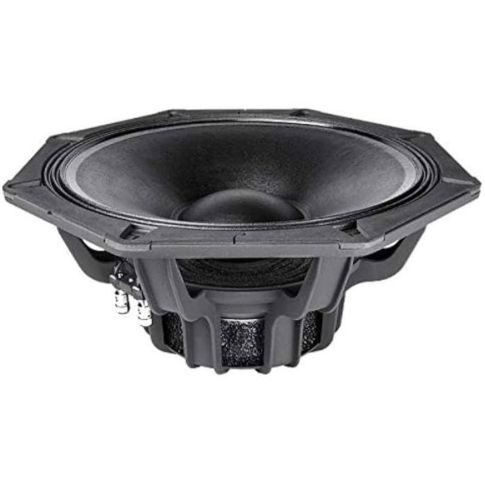

Faital Pro 15FX560 Loudspeaker – Recone Kit Version
SKU
FA-15FX560-RK
The Faital Pro 15FX560 recone kit delivers 700 W continuous power handling and 99 dB sensitivity in a lightweight neodymium design. This 15-inch driver restores high-output performance with minimal added weight for professional audio systems. It suits live sound, touring and fixed installations where tight bass and clear mids are required.
Restore full performance to your loudspeaker cabinets with the Faital Pro 15FX560 recone kit, a 15-inch driver built for high-output professional audio work.
This kit suits technicians maintaining systems in concert venues, touring rigs and fixed installations where reliable bass and midrange are essential.
Its neodymium motor supplies strong magnetic force while keeping overall weight low, which simplifies transport and setup on the road.
With 700 W continuous power handling and 99 dB sensitivity, the driver achieves high sound pressure levels without placing heavy demands on amplifiers during long events.
The 40 Hz to 4 kHz frequency range covers punchy bass through articulate mids, easing crossover design in two-way or three-way enclosures, whether vented or horn loaded.
An aluminium voice coil on a fiberglass former with a demodulation ring supports efficient heat dissipation and maintains low distortion through extended high-level use.
- Lightweight neodymium magnet motor yields high flux density for maximum output
- Aluminium 77 mm voice coil with demodulation ring keeps distortion ultra-low
- 99 dB sensitivity delivers powerful SPL with less amplifier strain
- Broad 40 Hz–4 kHz response reproduces deep bass and detailed mids
- Rugged aluminium basket and triple-roll cloth surround resist tour abuse
- Optimised Thiele–Small parameters ensure tight, accurate performance
| Additional Information | Nominal Impedance: 8 Ω Minimum Impedance: 6.5 Ω AES Power Handling: 700 W continuous / 1400 W peak Sensitivity (1 W/1 m): 99 dB SPL Frequency Range: 40 – 4000 Hz Voice Coil Diameter: 77 mm (3 in) Voice Coil Material: Aluminium Voice Coil Former: Fiberglass Winding Depth: 23.5 mm Gap Height: 14 mm Magnet: Neodymium Slug Crown, 1.1 T flux density Basket: Aluminum with aluminum demodulation ring Surround: Triple-roll treated cloth Xmax: 9.42 mm Xdamage: 21.8 mm Fs: 38 Hz Qts: 0.30 Vas: 159 L Sd: 864 cm² Overall Diameter: 418.4 × 388 mm Depth: 185 mm Net Weight: 7.5 kg (16.5 lb) Part Number: 03803997 |
|---|---|
| Main Sub Category | Audio |
